CNC 3018 PRO Laser Engraver Machine 20W Wood Router GRBL ER11 DIY Recorder Portable Milling Cutter Engeaver For PCB Metal Wood

CNC 3018 PRO Laser Engraver Machine 20W Wood Router GRBL ER11 DIY Recorder Portable Milling Cutter Engeaver For PCB Metal Wood

Name: CNC 3018 PRO Laser Engraver Machine 20W Wood Router GRBL ER11 DIY Recorder Portable Milling Cutter Engeaver For PCB Metal Wood
SKU: 3256807073946245
Availability: InStock

$136.00 – $192.00

SKU: 3256807073946245 Categories: Home Improvement, Tools, Woodworking Machinery

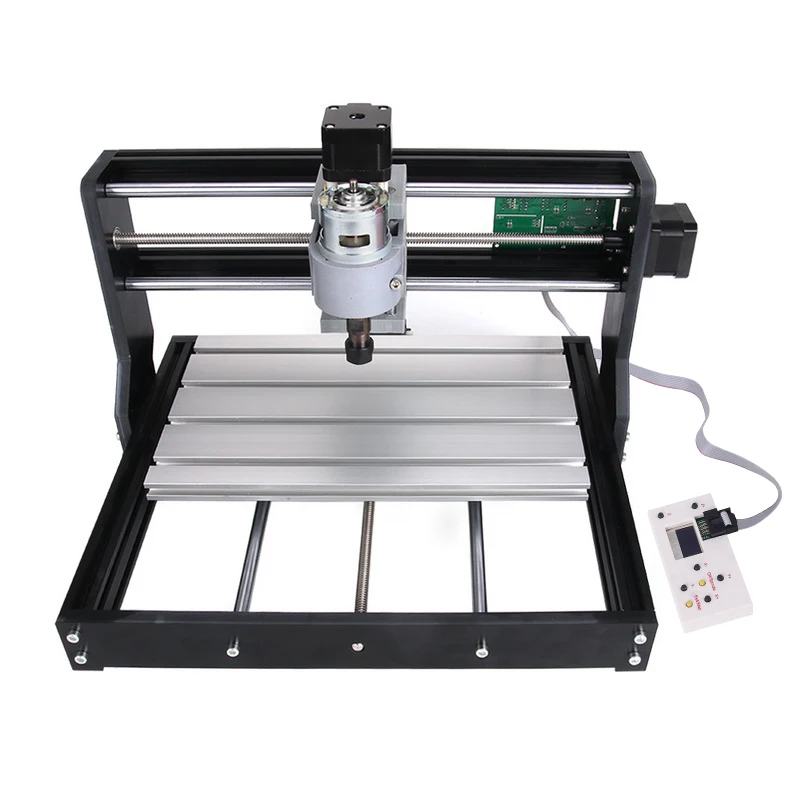

CNC 3018 PRO DIY Mini CNC Machine GRBL Control 3 Axis pcb Milling Machine Wood Router Laser Engraving with Offline

Specification:

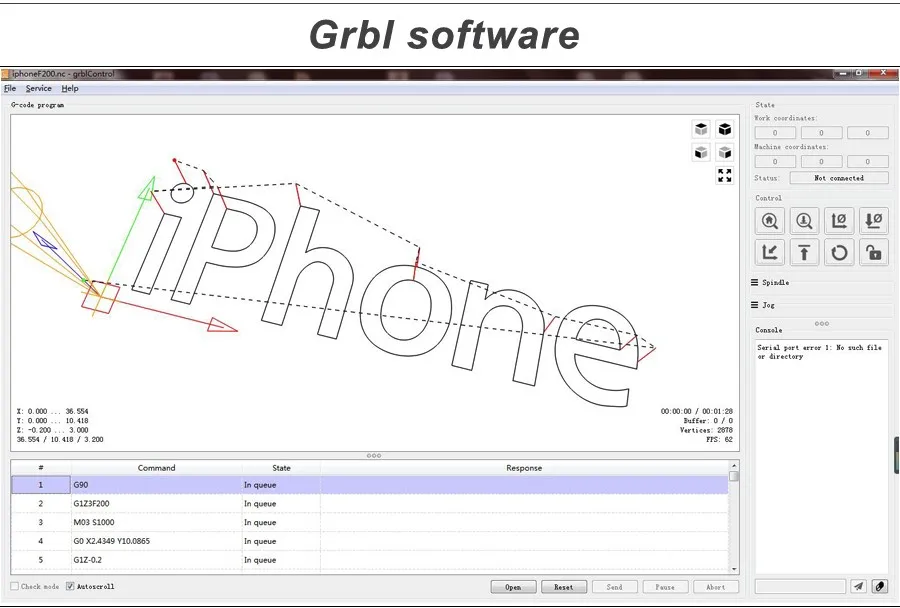

Control software :GRBL control

Engarving area : 300*180*45mm

Frame size : 400*330*240mm

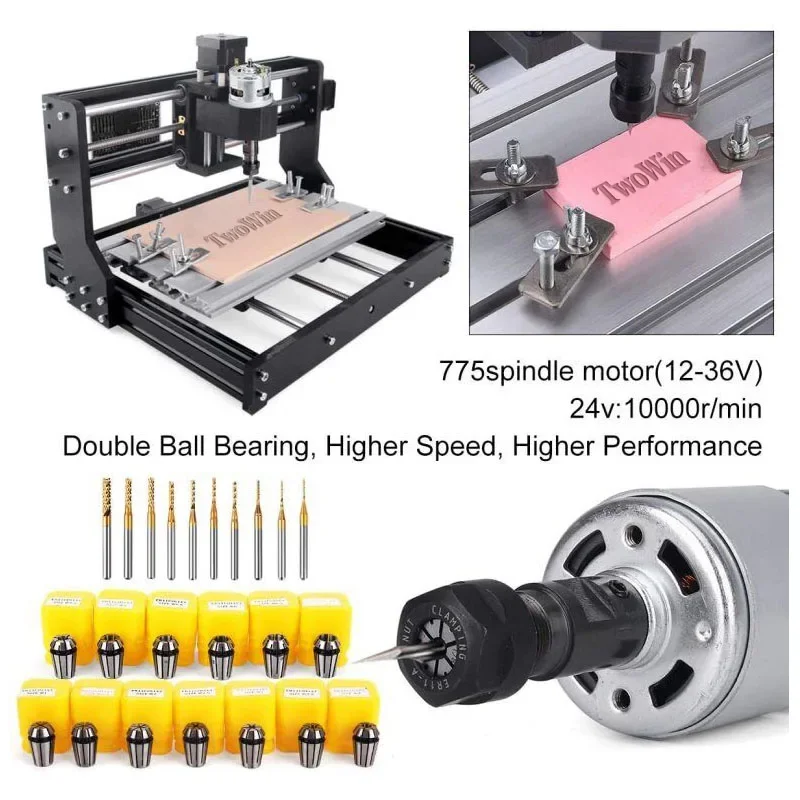

Spindle : 775 spindle motor (12-36V) 24V: 10000r/min

Step motor : 1.3A 0.25N.m

Power supply : 24V , 5.6A

Drill bits Diameter: 3.175mm tip: 0.1mm length: 30mm

Clamps: 4 pcs, Hold the thickness of 0-30mm,size: 50 * 20 * 3 (length * width * thick),

the inner slot width 6m

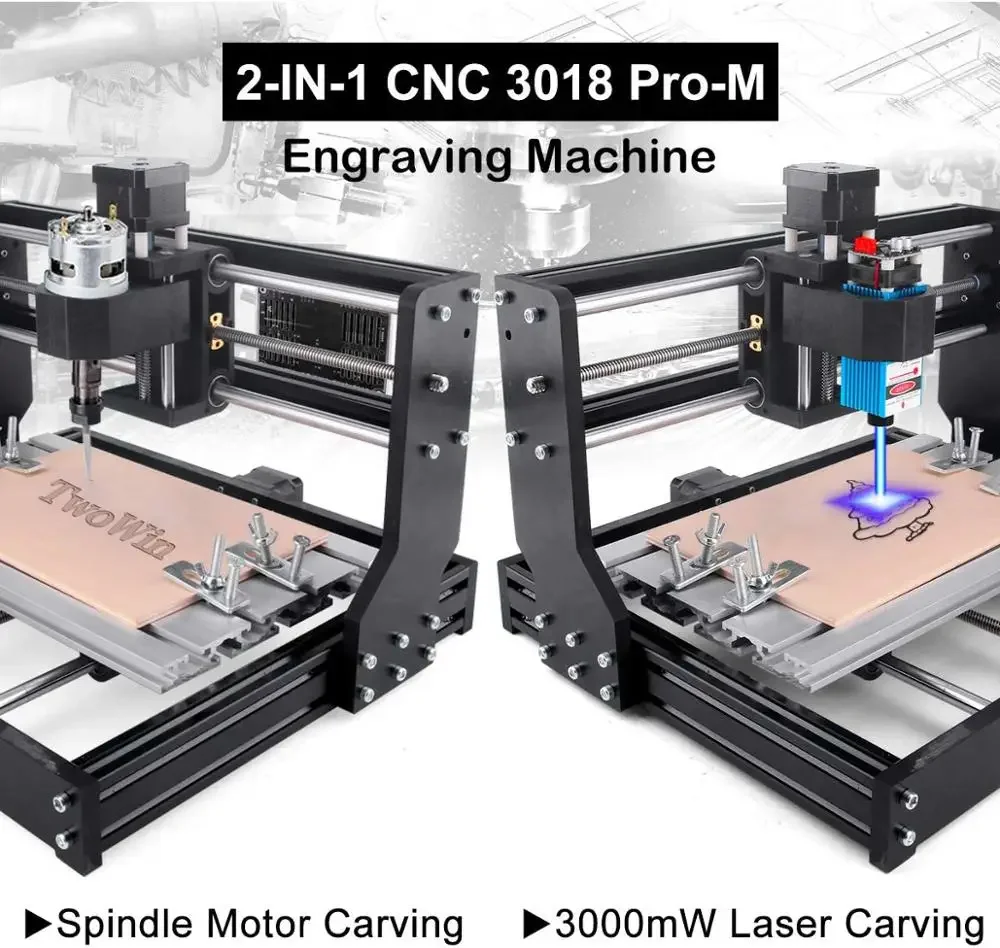

Laser Power:10W/20W

can carving on stainless steel surface and anode colored aluminum alloy surface and cut 3 mm wooden materials

MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam/Paper/Anodized/Aluminum/Ceramics/Stone/Stainless steel

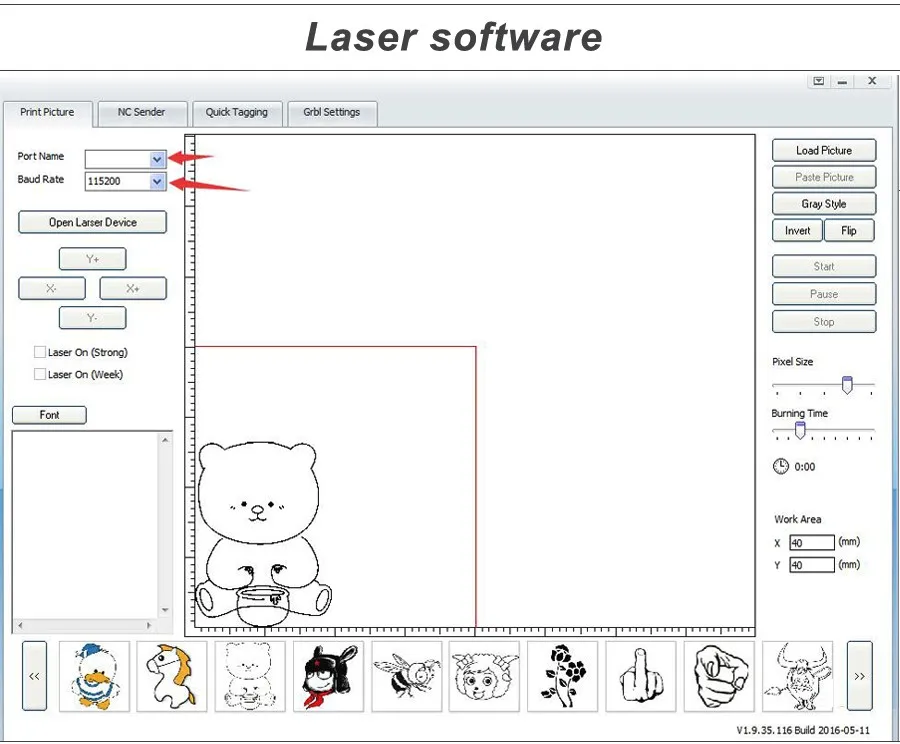

Download the English Manual and Software:

//my.pcloud.com/publink/show?code=XZnxbjkZXVSLxPtS6tJvEsuV8z2HDRA0LcTX

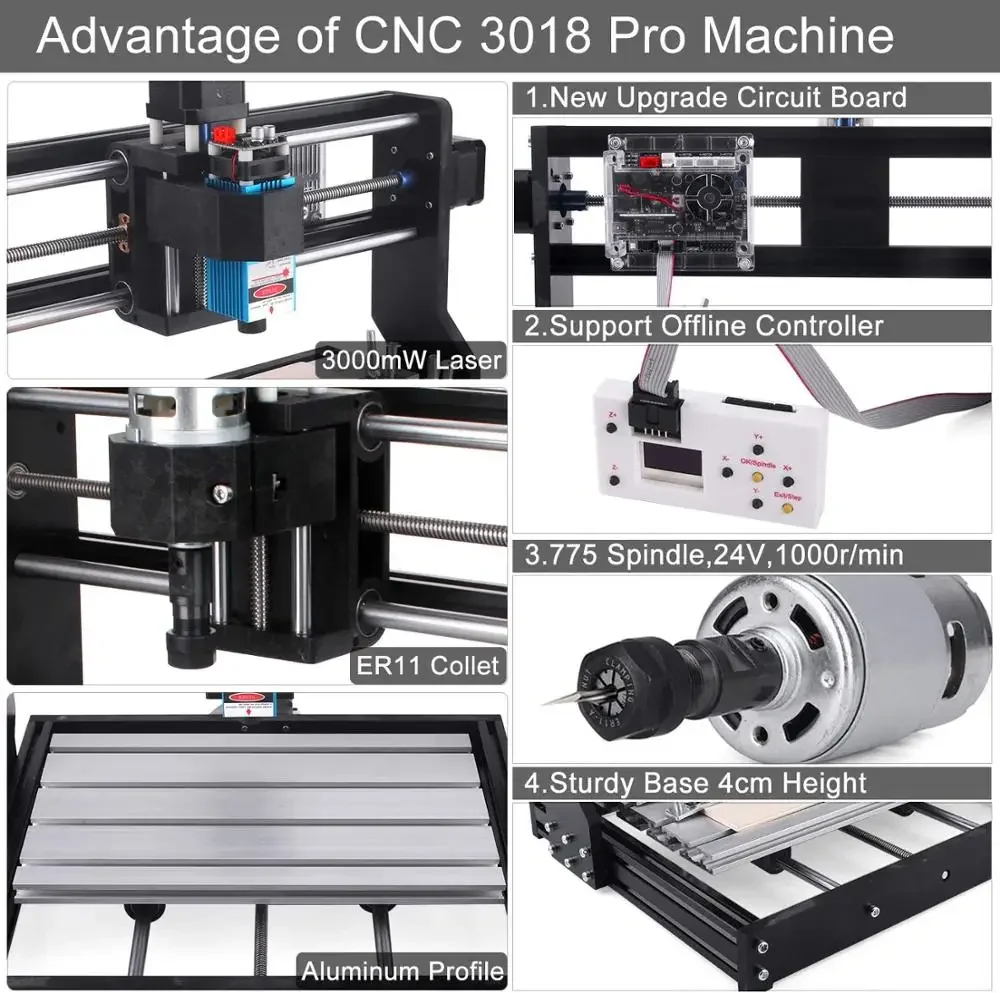

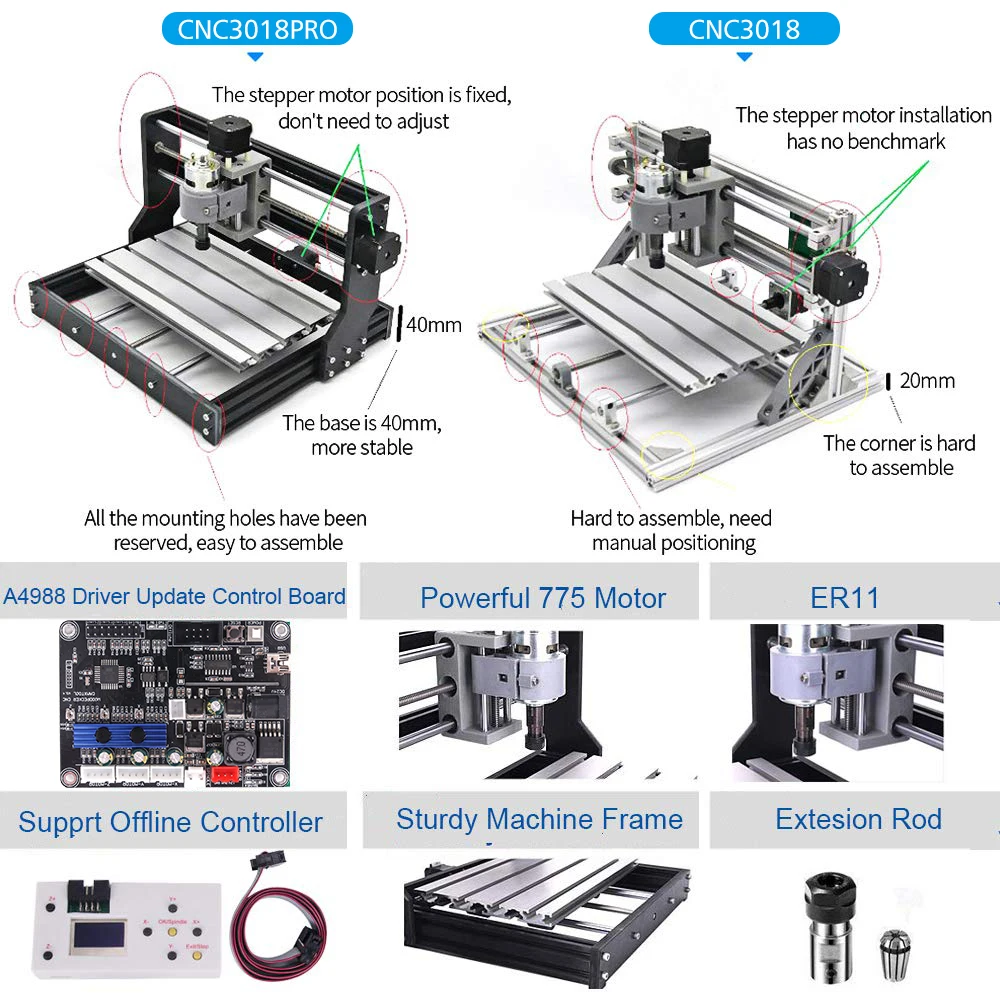

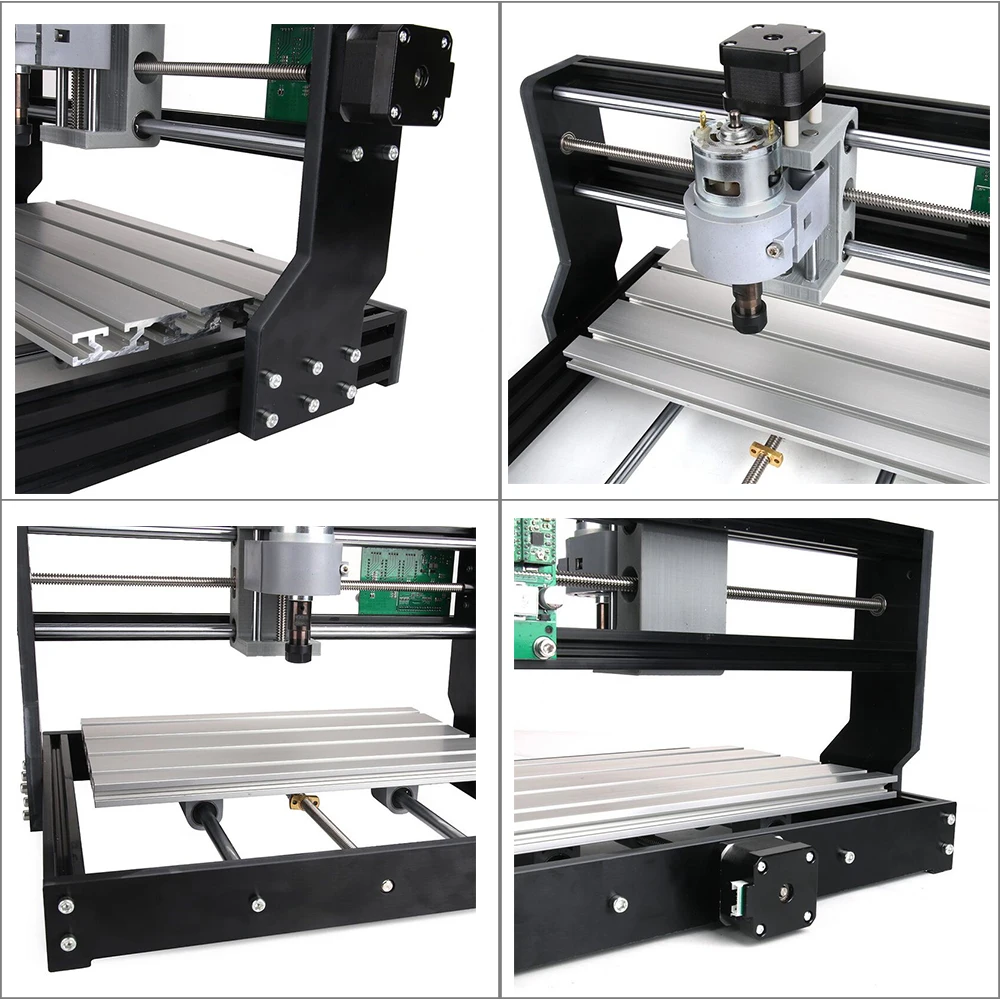

Advantage:

1. No need to locate all places, the assembly difficulty is greatly reduced, and the precision is high.

2. There are no corner pieces, one piece is formed, and there is no error.

3. The base is 4 cm high, high strength and high stability.

4. Positioning when installing the motor, no adjustment is required.

5. the structure is stable, the shape is simple, the assembly is difficult, now the 3018Pro machine only takes about 20 minutes to complete the assembly. Some components and core components have been assembled and can be used by hand assembly according to the installation instructions.

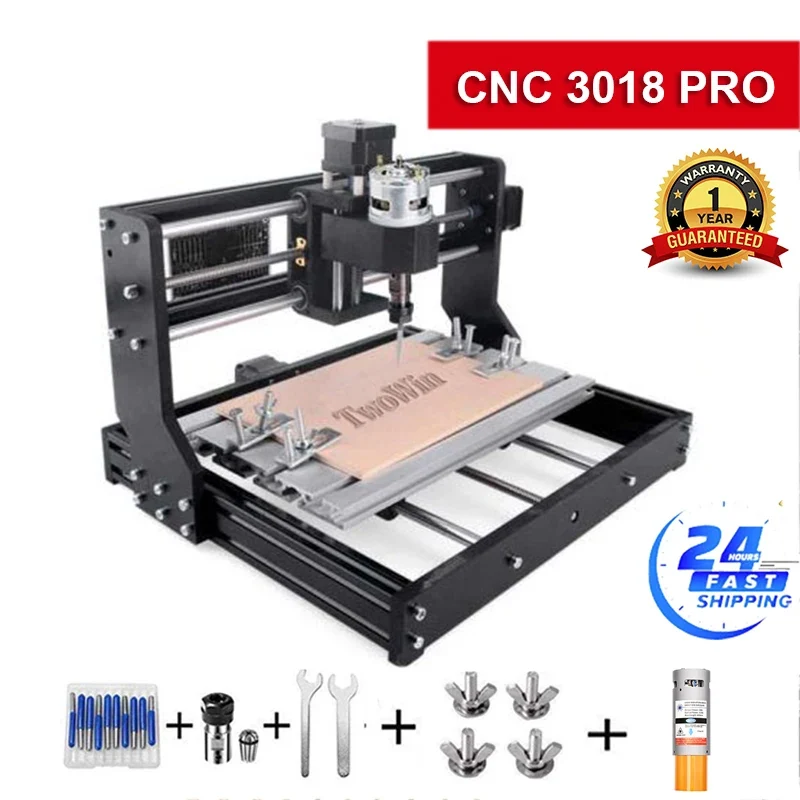

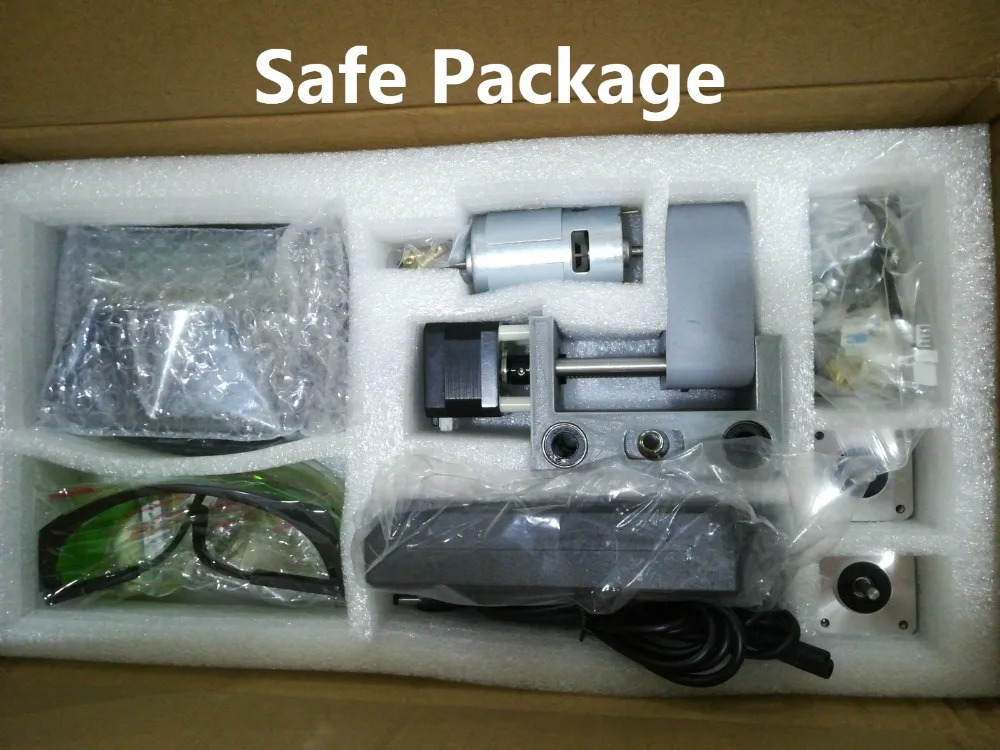

Package Included :

1*CNC 3018 PRO Machine

1* Laser （option）

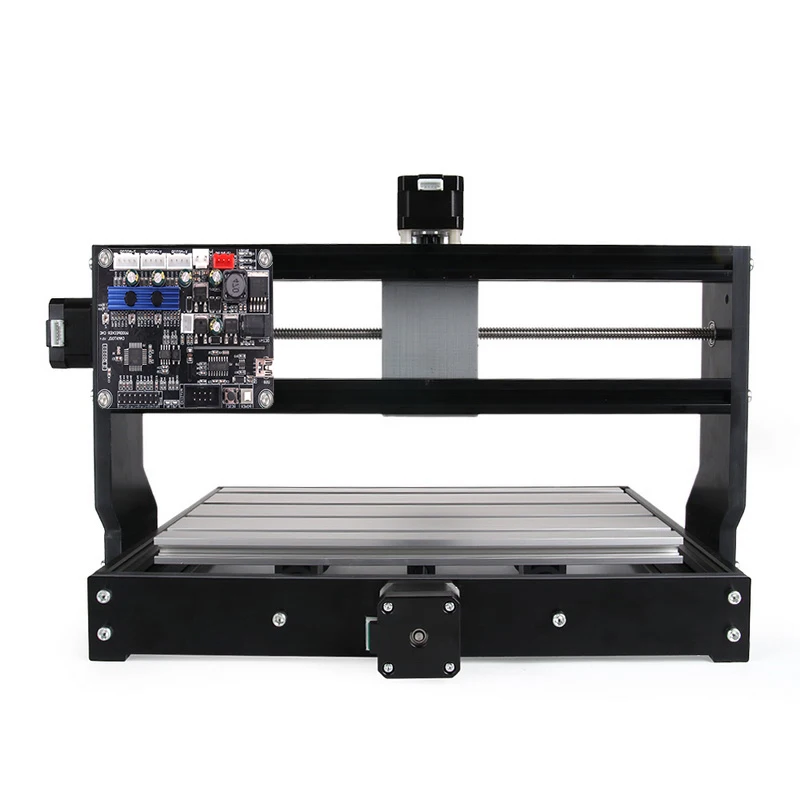

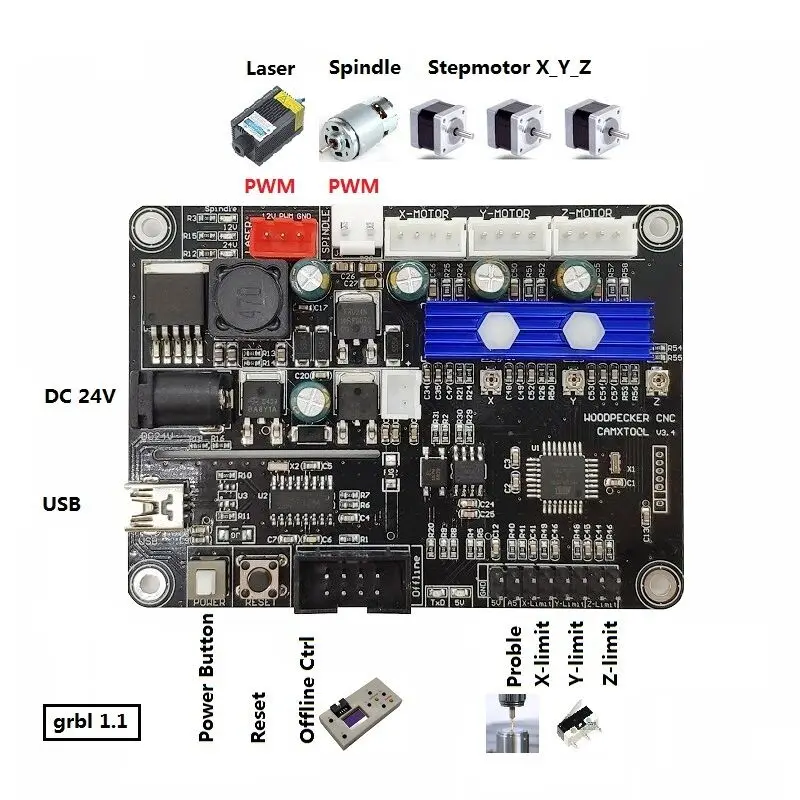

Dear friend, we updated the control board, the new control board is more perfect :

1. Increase the outer casing to make the control panel safer in transit and less likely to be damaged.

2. Increase the power button switch, the switch is the control signal of the power supply, no large current flows through the switch, do not worry about the switch size.

3. Cancel the drive module, integrate the imported stepper motor drive, and bring its own short circuit protection, no need to worry about module damage. And integrated heat dissipation aluminum alloy.

4. Increase the fan to force heat dissipation.

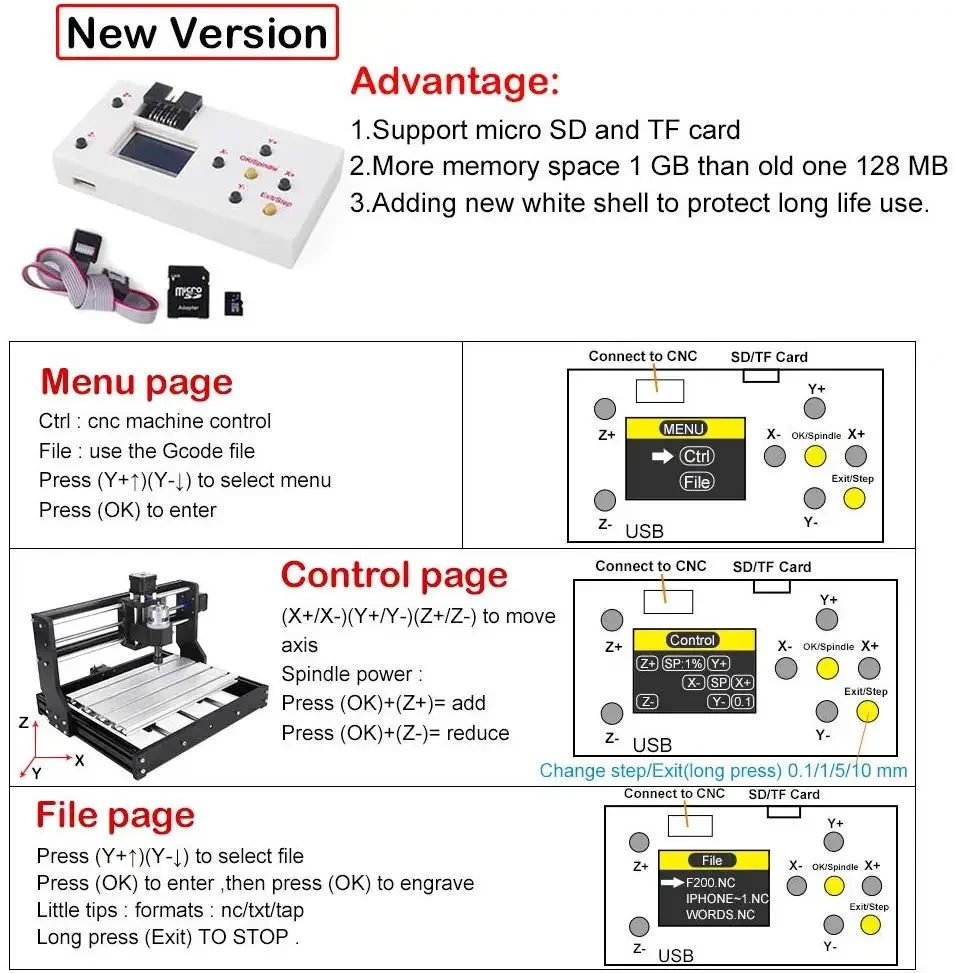

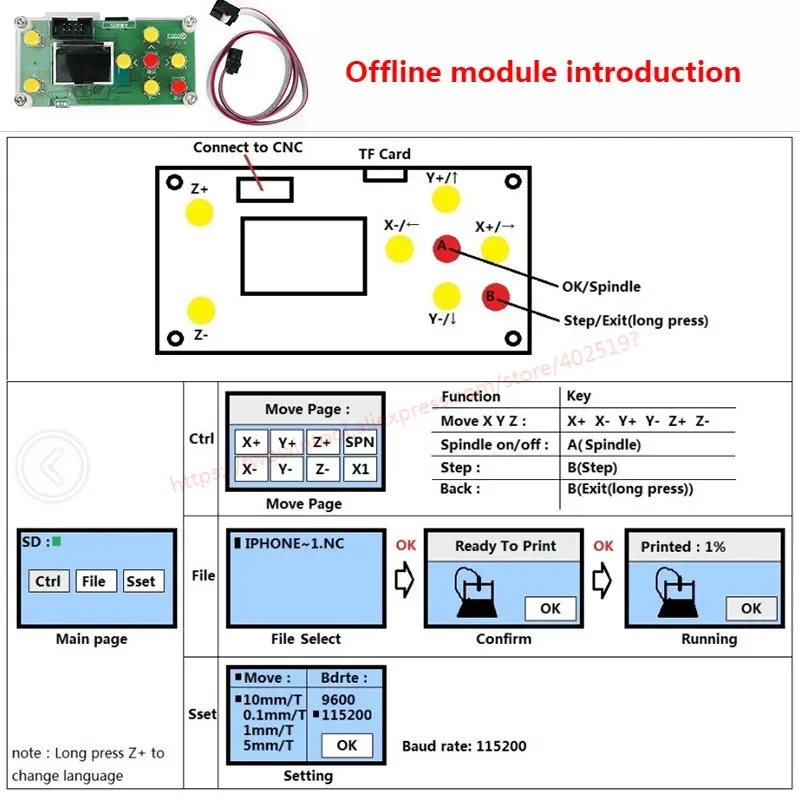

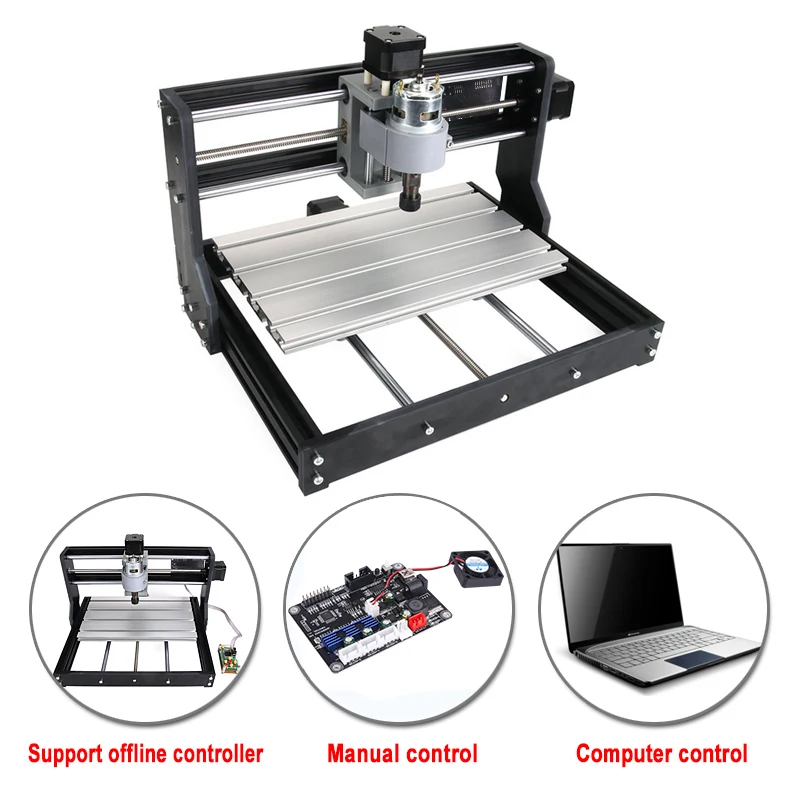

5. Add offline recognition function, you can insert offline modules and computers at the same time. Offline will automatically identify if there is computer control.

6. Enhance the spindle drive. Can support 20,000 rpm spindle. Support for larger power spindles.
