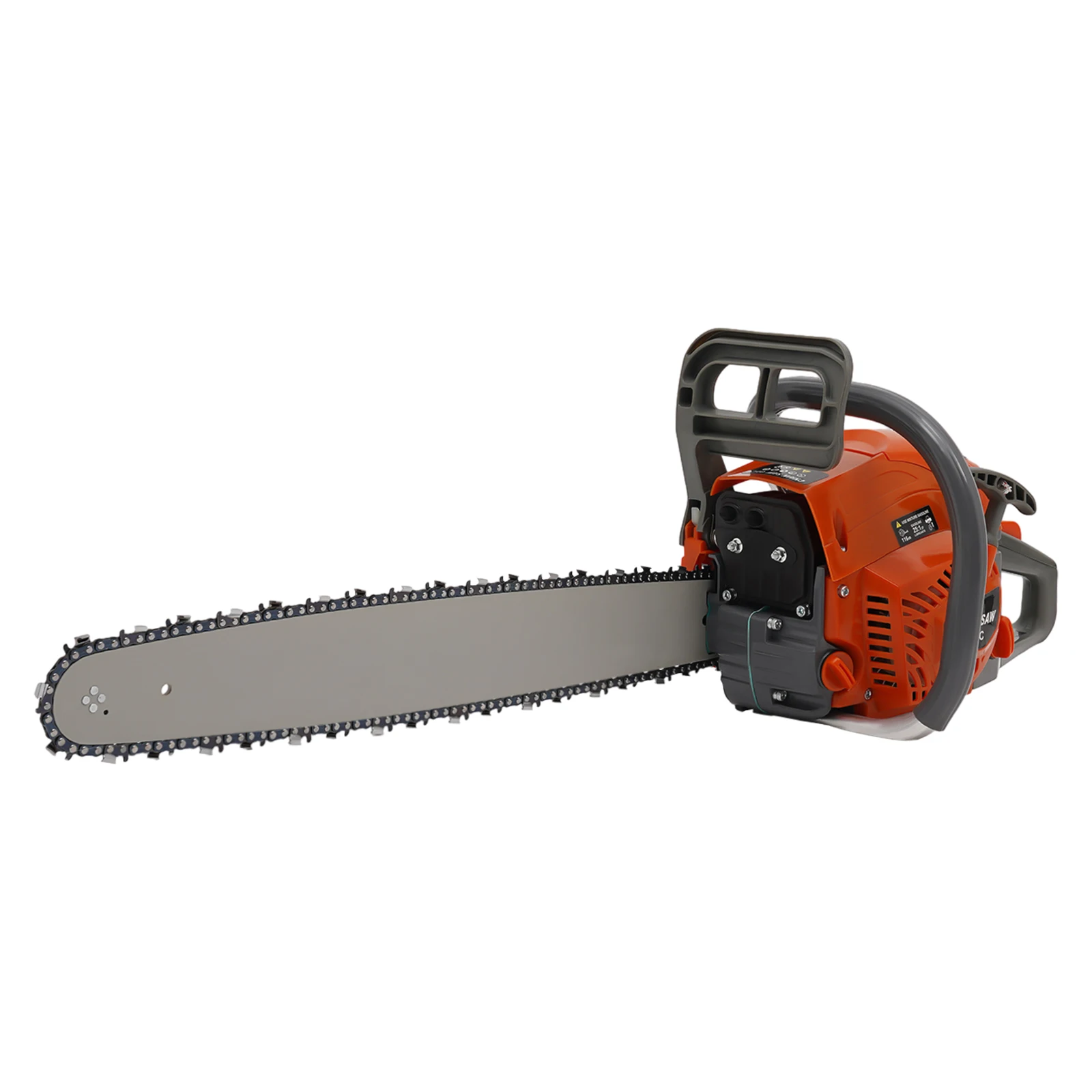

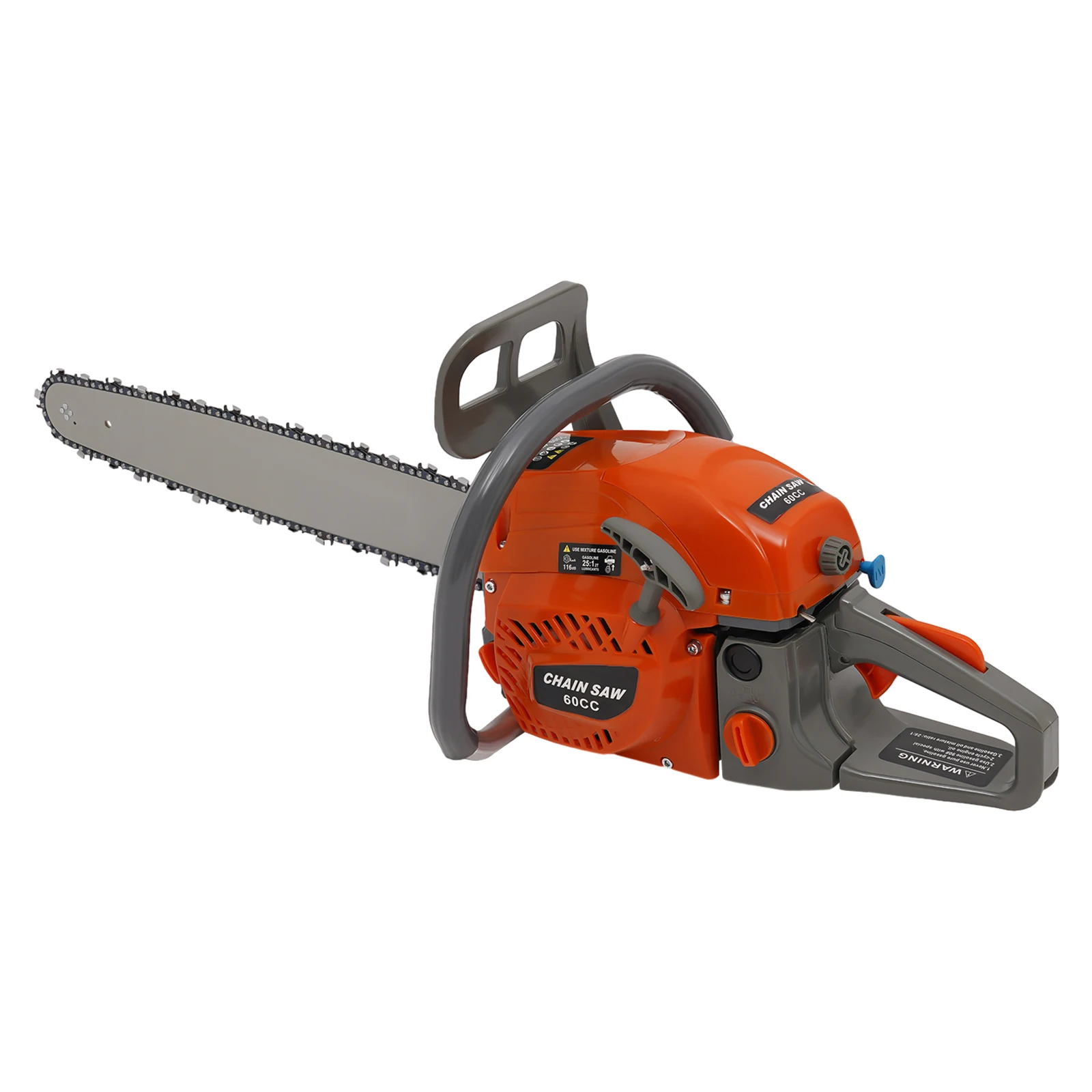

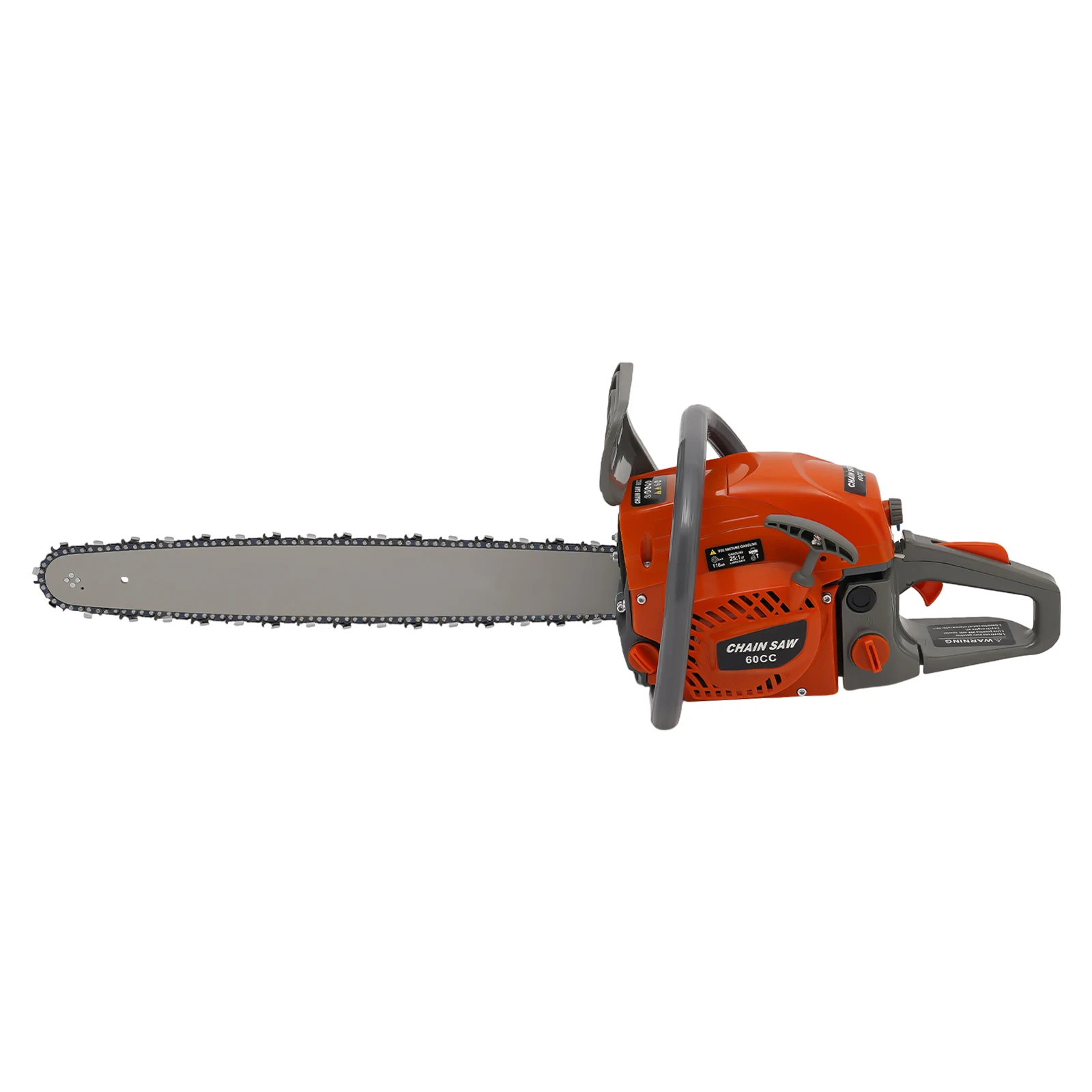

60CC 2.8KW Gasoline Chainsaw 22″ Handheld Cordless Petrol Chain Saw Gasoline Chain Saw Professional Farm Garden Tool Accessories

Description

Selected materials, excellent performance and powerful engine make this gas chainsaw an efficient professional cutting tool, which saves you time and labor. With silent and vibration-dampening design, an ergonomic handle, a braking baffle, and a pull-start ignition method, it is safe and comfortable to use.

Key Features

Excellent Performance: The 2-stoke engine with 60cc displacement, 10000rpm high speed, and 2.8KW high power, the high-magnetic flywheel with thickened blade design, the filter, the pressure-reducing valve, and the 22″ guide chain can achieve fast cutting, thus providing excellent performance(about 22″ cutting diameter).

Durable: It is made of high-quality nylon housing, aluminum handle, and Mn steel guide bar&chain, which is insulating, strong, durable, wear-resistant, and not easy to deform.

Cost Saving: The combination of this quality carburetor and automatic lubricating oil system enables the product to provide a stable and economical supply of chains and bars, quickly and easily adjust chain tension, and reduce friction and oil consumption by 20%, thereby improving cutting performance and extending service life.

High Safety: The double protection switches that must be pressed at the same time to work can prevent the machine from accidentally starting. The heat-sink holes on the machine also ensure good heat dissipation. Moreover, the guide plate has an inertia-activated chain brake to reduce the possibility of injury due to recoil, and the practical gloves and the widened brake baffle that makes emergency braking can protect your hands from hurting, avoid sawdust splashing, and improve safety.

Convenient and Comfortable: With a hand-pull spring-loaded starter handle, premium spark plug, safety switch, and throttle switch, it’s convenient to use. Its cordless design and non-slip shock-absorbing ergonomic handle allow you to operate more easily and freely. Moreover, the silencing and damping designs can effectively reduce noise and vibration, providing you with a multi-angle cutting by changing the direction of the machine, which is convenient for you to use.

Easy to Install: The simple structure, complete accessories, and English manual allow you to install this product in minutes, saving you time and labor.

Details

Tool Bag: It can help you organize your accessories in an orderly manner, making it easy for you to carry around and effectively preventing accessory loss.

Fuel Tanks: The 18.6Oz translucent fuel tank and 4.73Oz chain fuel tank allow for large capacity, a convenient mixture of fuels, and long-term use without frequent filling.

Double Nuts and Piston Rings: The guide plate is fixed with double bolts to ensure the stability of the product and make the chain not easy to loosen. The rings make the product sealing performance better, which can increase the machine’s power.

Guide Bar Cover: It allows for convenient storage and better protection of the guide bar when not in use.

Specification

Color: Orange

Style: Modern

Assembly Required: Yes

Material: Nylon, Mn Steel, Aluminum

Engine Type: Single Cylinder, Air-cooled, 2-Stroke

Ignition System: Self-reset Pull Start

Fuel Tank Capacity: 550ml/18.6Oz

Chain Fuel Tank Capacity: 140ml/4.73Oz

Bore: 45.2mm/1.78inch

Volume: 116dB

Power: 2.8kw

Speed: 10000rpm

Displacement: 60cc

Oil Mixture: 25:1(90# Gasoline: Oil)

Max. Cutting Diameter: 55cm/22in

Chain Length: 55cm/22inch

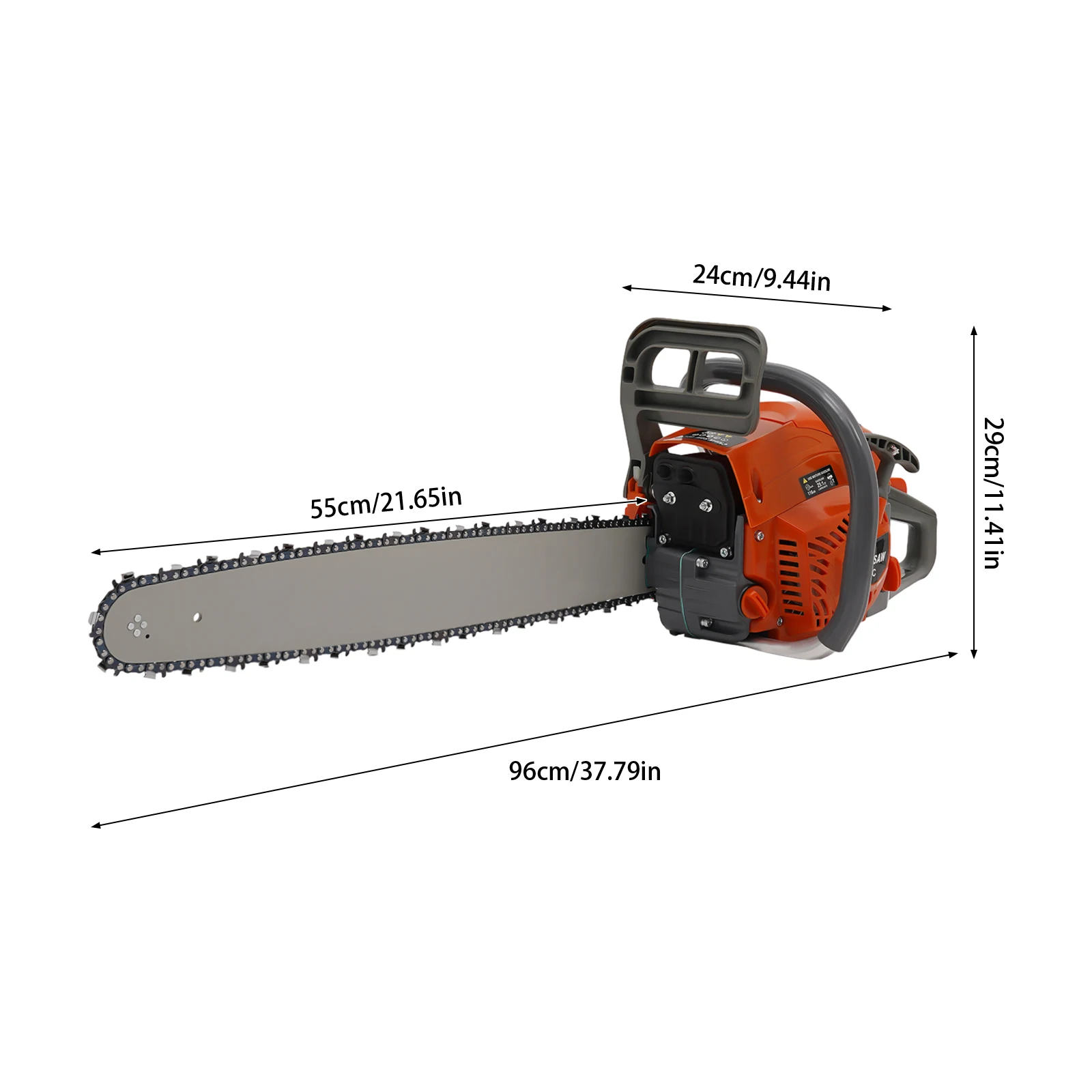

Product Size: 96*24*29cm/37.79*9.44*11.41in

Package Size: 60*27*33cm/23.6*10.6*13in

Gross Weight: 8kg/17.64lb

Package Included

1* Gas Chainsaw

1* Chain

1* Guide Plate

1* Tool Bag

1 Pair*Glooves

1 Pair*Goggles

1*Ear Protector

1* English Manual

How to Assemble the Chainsaw

Install the jam teeth in the right direction.
Install the guide bar.
Install the chain.
Cover the side cover.
Adjust the chain tightness.
Tighten the screw.

How to Start the Chainsaw

1. Push the brake.

2. Move the On/Off switch to the On position.

3. Pull the choke knob fully out to position.

4. Pull the start handle(Max 6 times).

5. Push the choke knob back fully.

6. Pull the starter until the engine start.

Notes

Before starting the gasoline chainsaw, please ensure that it fits well with the guide bar, and use a wrench to adjust the chain. When installing the guide bar, please note that the screw column on the side cover must be aligned with the guide bar hole before installation(The function of the screw column is to adjust the chain tightness.).
Please use gasoline 90# with special 2-cycle engine oil and never use pure gasoline. Gasoline and oil mixture ratio: 25:1. The oil output can be controlled to turn larger to the left and smaller to the right.
Please note that after the first ignition sound, closing the choke and repeatedly pulling the start handle will suck in too much fuel and prevent the engine from starting.
If the choke knob is not fully pushed back after pulling the starter handle up to 6 times, the engine preheating may be missed. Too much fuel will flow out and submerge the spark plug. Then you can’t start the chainsaw. The damper is used to regulate air intake. When the engine is cold or not used for a long time, the damper needs to be pulled. If the engine is hot, it can be started directly. This is the same as the principle of starting a motorcycle! Close the damper, pull the start handle again 1-3 times to start it, and then you can use it normally.
Please pay attention to the tightness of the chain during installation (Pull the chain by hand. The distance between the chain and the guide plate is 0.12-0.2 inches.), otherwise, it will affect the use effect.
After the chainsaw is started (The oil filler door must be empty.), it must wait for the chain to receive oil before starting to work(The oil pump will discharge oil and the ground will become wet.).
The carburetor must be cleaned after every 100H of operation before use. The air filter must be cleaned after 8H of operation. When the chainsaw is not in use, it is better to pack it in plastic bags to avoid dust and water entering the machine and affecting its use. If the chainsaw is not used for a long time, the fuel oil in the tank must be cleaned.
Please read the manual and product labeling completely before installation and use, and pay particular attention to the safety instructions included.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
