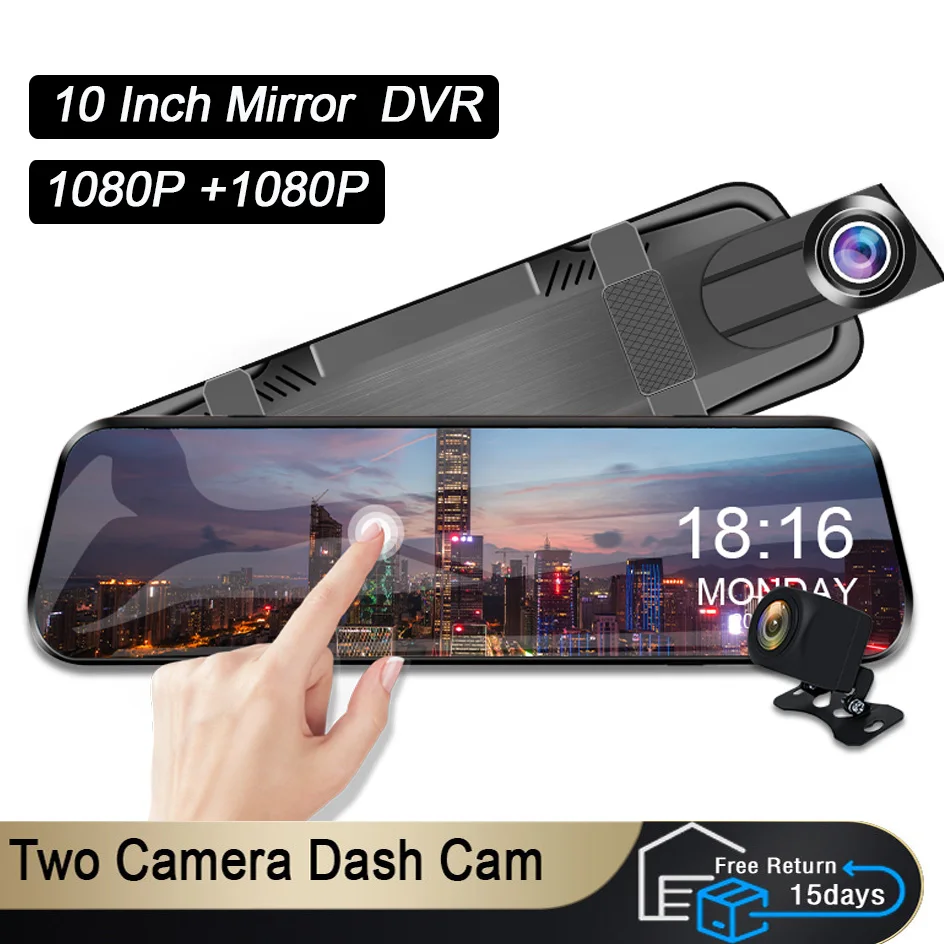

10 Inch Mirror Camera for Car Touch Screen Video Recorder Rearview Mirror Dash Cam Front and Rear Camera Mirror DVR Black Box

● Installation: Type Rearview Mirror, suitable for all vehicles with mirror
● Screen (display) size: 10.0 inch Touch IPS screen
● Chipset(Processor/CPU): Generalplus
● Camera Sensor: Front 2MP + Rear 2MP
● Camera Lens: Front + Rear; 6 Glass + 4 Glass; 170 Degree Angle + 140 Degree Angle; F2.0 Aperture + F2.0 Aperture
● Video Resolution: Front: 1920*1080P@30FPS; Rear: 1920*1080P@25FPS
● Photo Resolution: 12M
● Video Code: MJPG
● Battery: Built-In (Built-in battery is very small, can not support working, only for save time&setting, please use original power charger when working)
● OSD Languages: Russian, Chinese, English, Korean, Japanese, French, Polish, Dutch, Spanish, Hebrew, Portuguese, Arabic Turkish, German, Hungarian, Lithuanian, Czech, Italian, Slovak, Romanian, Thai, Vietnamese.(As the memory of the machine is limited, what language is required? Contact the customer service before placing the order. If no special remarks are made, the goods will be delivered in the default language)
● Basic Features: G-Sensor, Cycle Recording, Motion Detection, Parking Monitor, Time&Data Display, Wide Dynamic Range, Picture in picture display, ON/OFF Automatically
● Memory Card: Micro SD Card, class 10 and 16GB to 64GB (Not included)
● Rear Camera Upgrade: Support max 10 meters cable Rear Camera
● Add Features: Night Vision
● More Features: Coming soon…..

Packing List

● 1 x packaging box
● 1 x DVR
● 1 x power charger
● 1 x User manual
● 1 x 1080P Night Vision Rearview Camera With 6 Meters Cable(Optional)
● 1 x Buck Line For 24H Parking Monitoring(Optional)
● 1 x Real Class 10 High Speed TF Card(Optional)

Pay Attention

●About 24h Monitoring
The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).
●About Video
Our Car DVR is FHD 1080P Video Recorder,must use high quality Class 10 TF Card, any low quality/low speed TF card all can’t support our DVRs work normally, if you can’t make sure you have good TF Card,please buy our Original TF Card together.

Main Feature

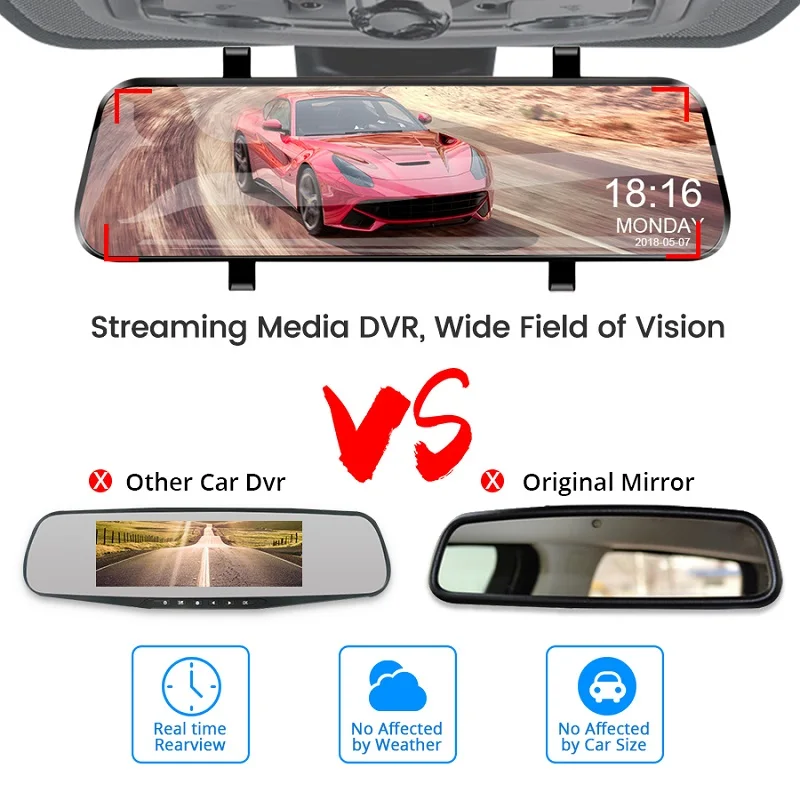

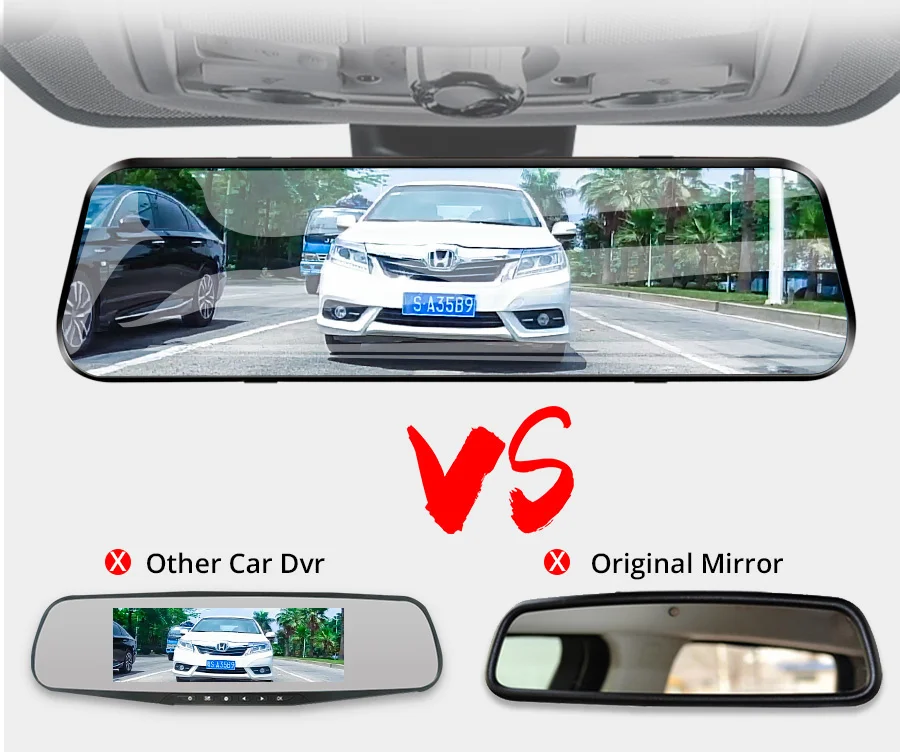

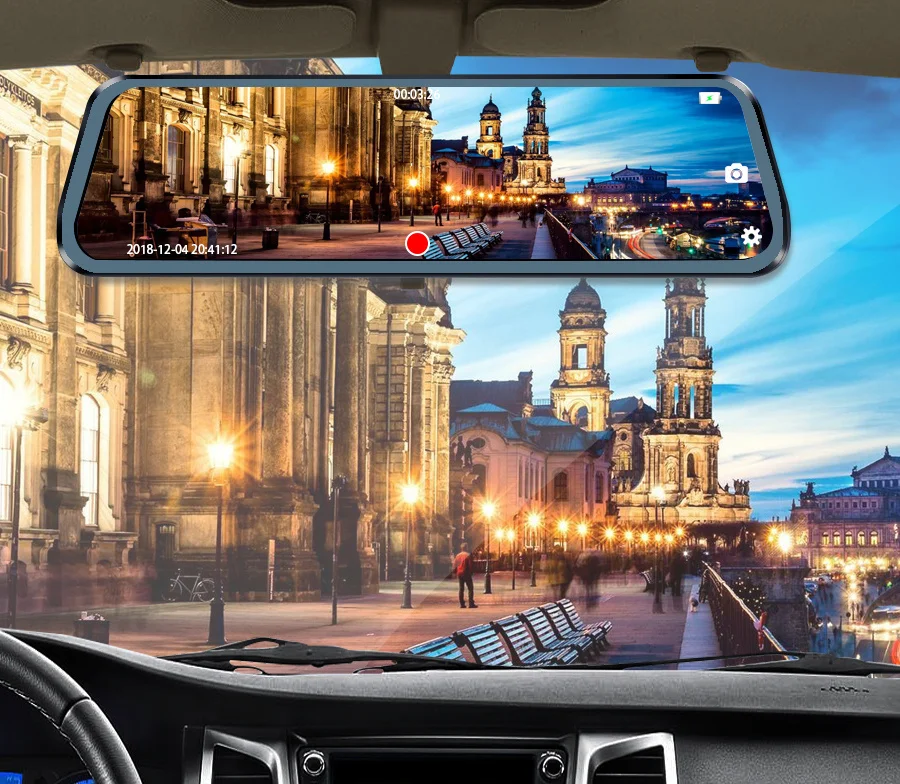

Streaming media rear view mirror use full screen instead of original rear view mirror. Display rear image of vehicle on screen in real time through camera.

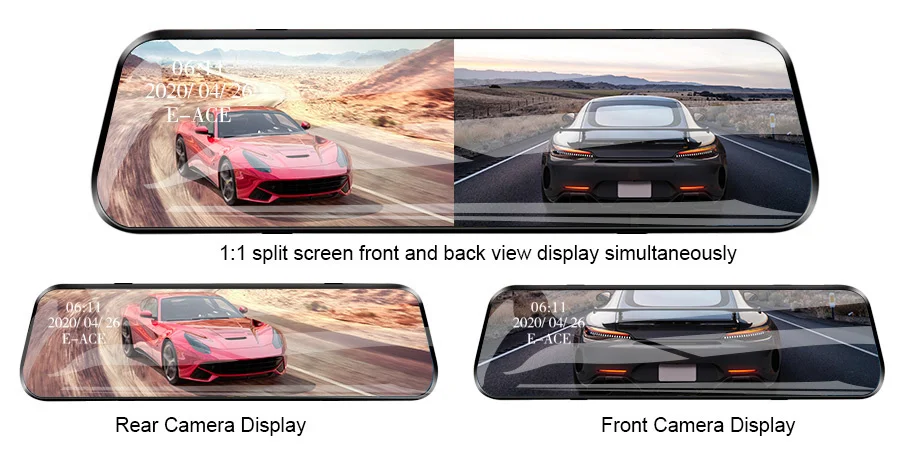

1:1 Split Screen

1:1 split screen design to switch front and rearview recording, big screen and clearly and ersily to check rear view.Touch screen to switch to front camera,back camera.

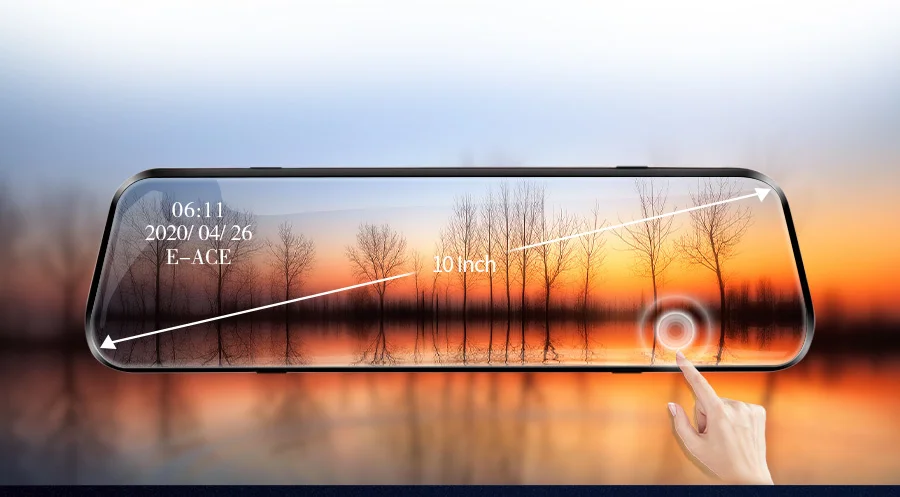

10 Inch Touch IPS Screen

We use the largest IPS Screen,with touch function,get more convenience for operation,get more higher resolution for videos/images display.

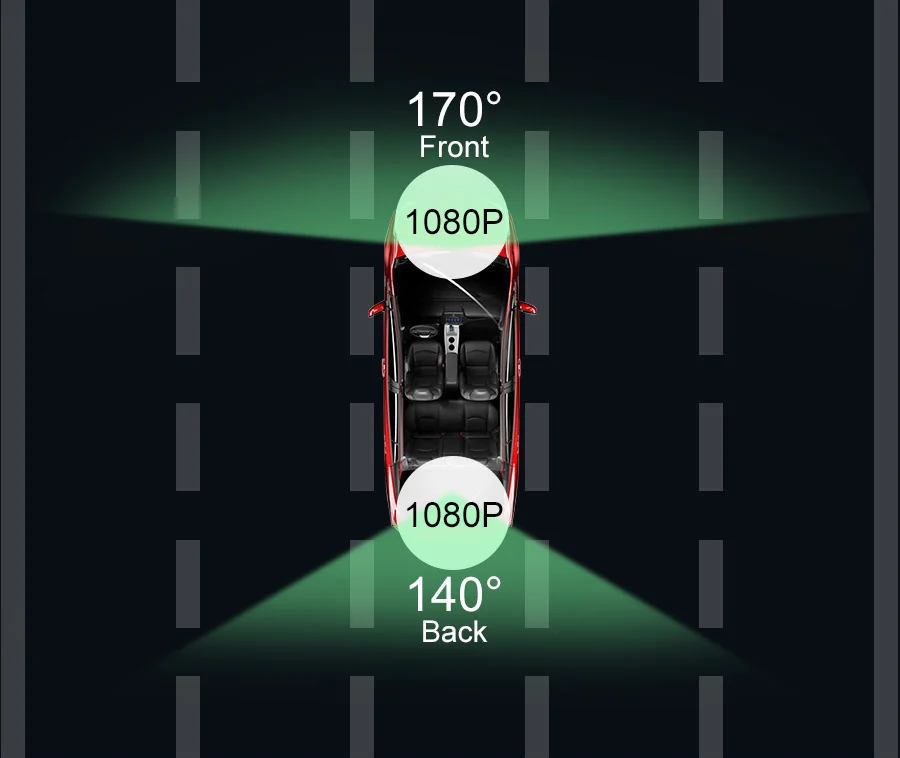

170 Degree Wide Camera Angle

A20P front Camera Lens is with 170 Degree large wide angle,and it have 10 Inch large screen,can have super view.Rearview Camera Lens is with 140 Degree angle,good view for reversing.

6 Glass HD Lens

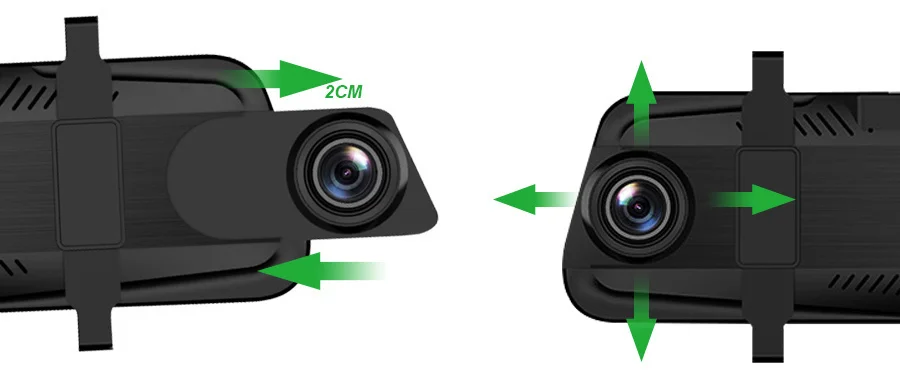

Flexible front camera, 2cm longer can be adjustable,can also adjust the lens up and down and left and right. And 6 glass HD lens , through the most, too dark, the screen of the active exposure adjustment, which is more detailed picture details, the image clearer.

2.5D Curved Surface Screen

2.5D curved glass design, scratch-resistant ,anti-glare,anti-fingerprint.

Real-time Display Reverse Parking view

Smart rear view angle switch between driving and parking. You could see all further vehicles and objects clearly behind. you while real-time driving and it will switch the rear view camera automatically to give a closer backup image when parking.

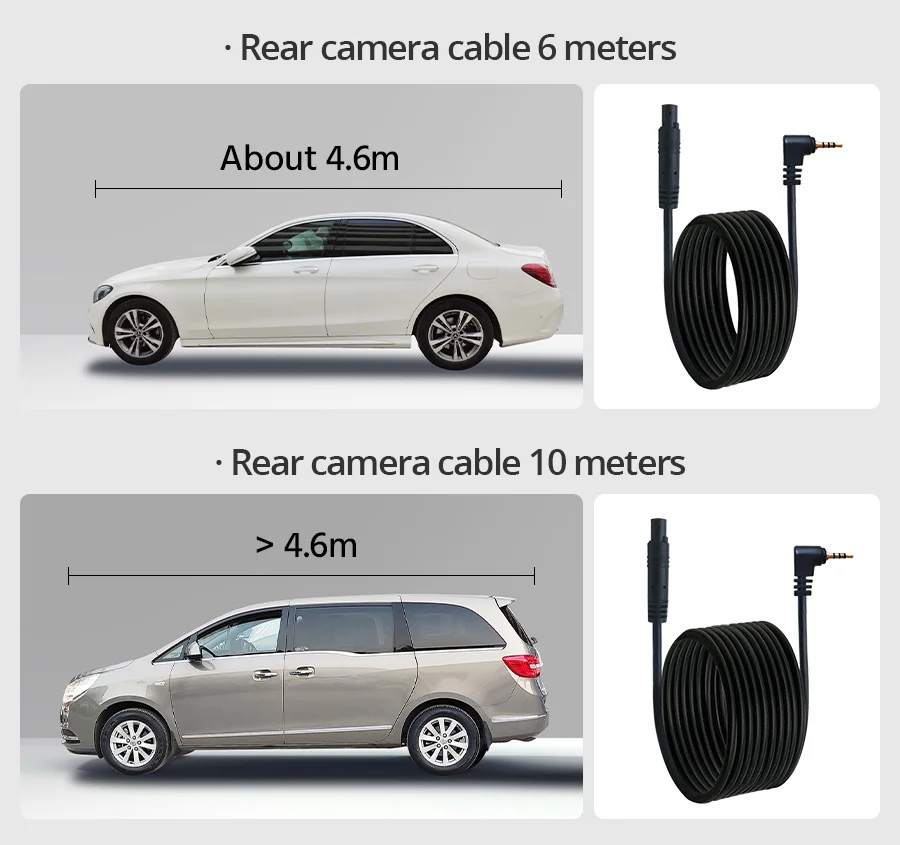

About Choosing The Length Of Rear Camera Cable

There are 2 lengths of rear camera (up to about 10 meters) can be chosen,suitable for cars of different lengths.Please choose the rear camera according to the length of your car.

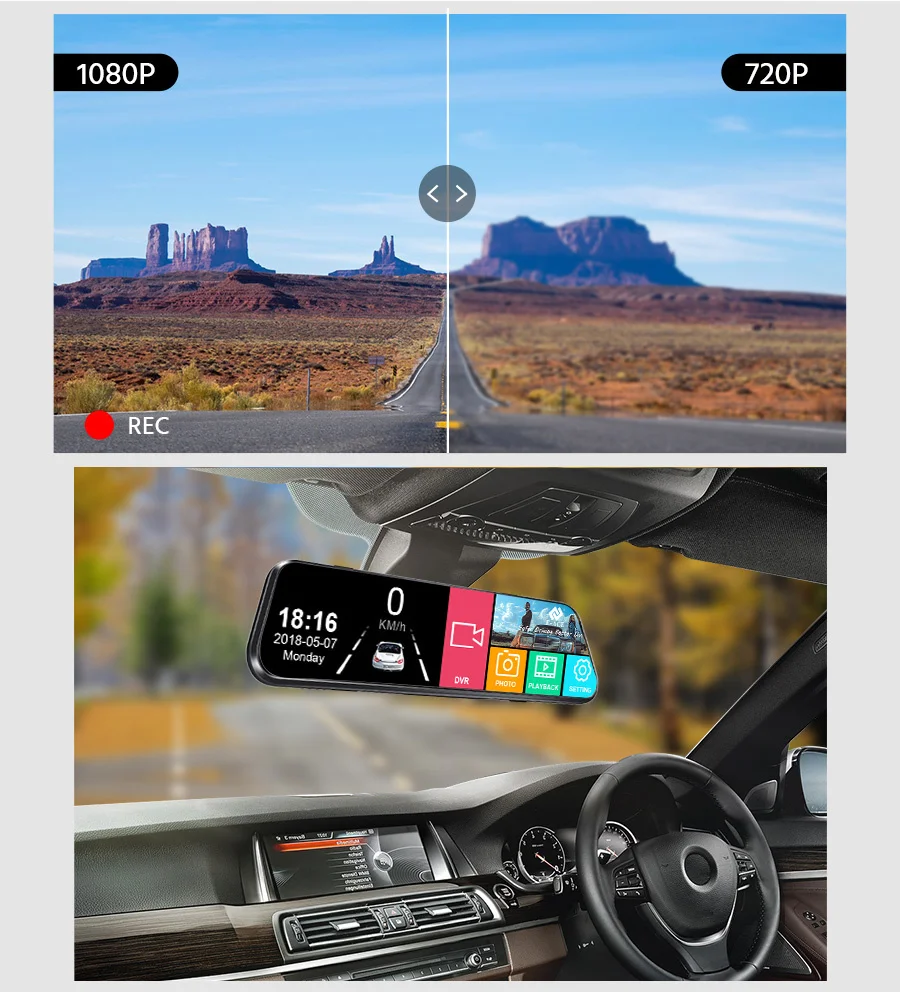

Full HD 1080P Video Quality

Higher quality images help to identify vital details such as license plates,driver actions and road features which may prove your innocence.

Loop Recording

When this feature is turned on, the memory card is full and the oldest video will be overwritten by the newly recorded video.However, videos under special conditions will not be overwritten, such as G-sensor, Parking Monitoring.

Moving Detection

With the motion detection function is enabled, when the Car DVR detects a moving object, it will automatically start recording video. When there is no moving object, it will stop recording and detect the moving object again.

G-Sensor

When your car is subjected to an impact or other emergency, the G sensor is triggered, so that the recorder immediately records and locks the video.

Parking Monitoring

When the machine is powered normally and the monitoring mode is on,if the vehicle body is bumped, the recorder will start monitoring video,thus protecting your property.(If you want 24H parking monitoring,please buy a Transformer Cable.)

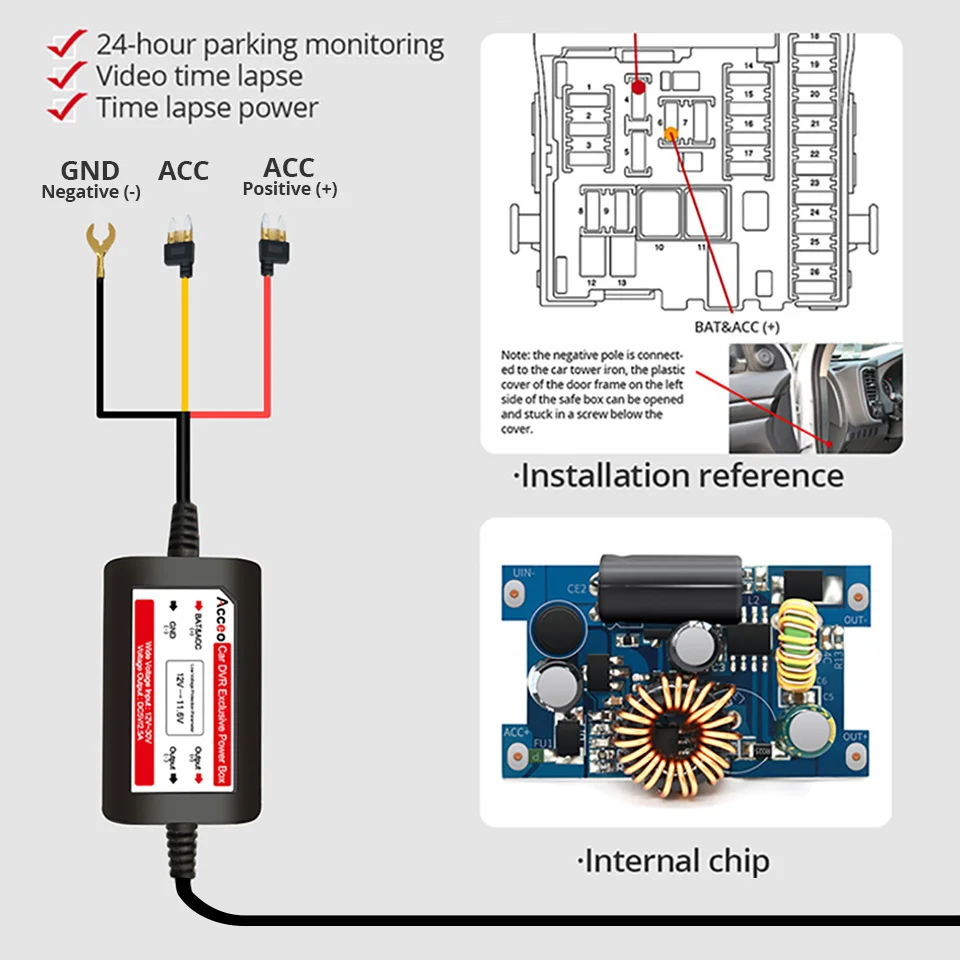

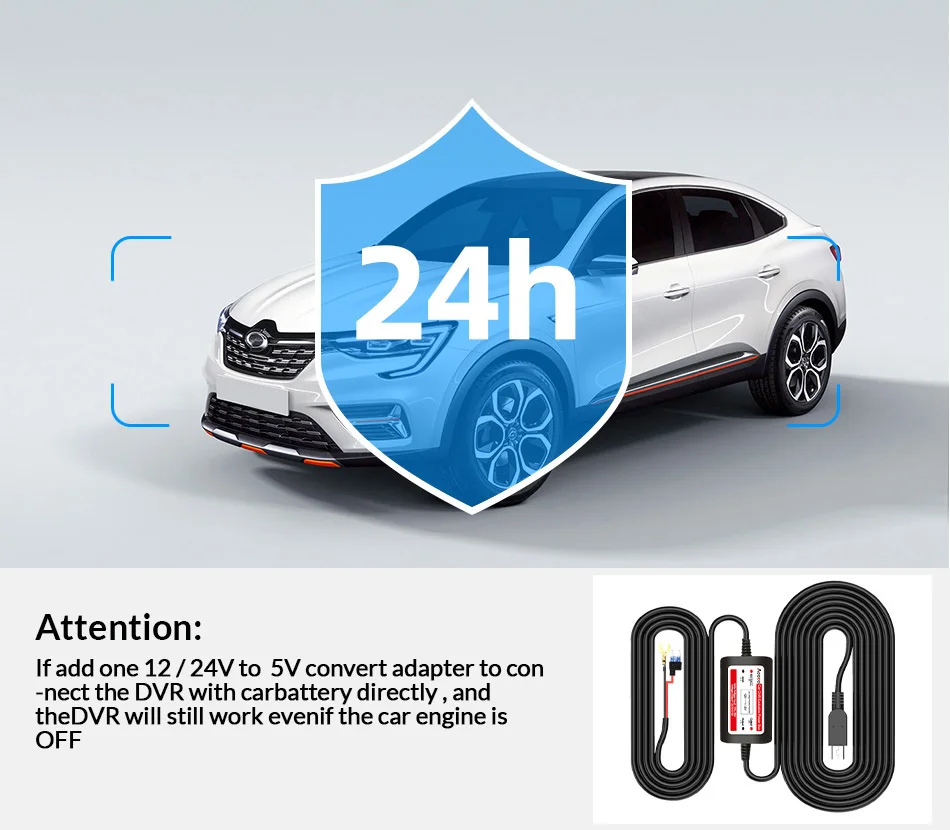

Hardwire Kit

Use the Hardwire Kit to not occupy the cigarette lighter interface.
First, connect the negative pole(black line) of the Hardwire Kit to the ground of the car fuse box;
Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive pole(red line) of the Hardwire Kit to the BAT interface of the car fuse box;
If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole of the Hardwire Kit to the fuse box ACC interface.

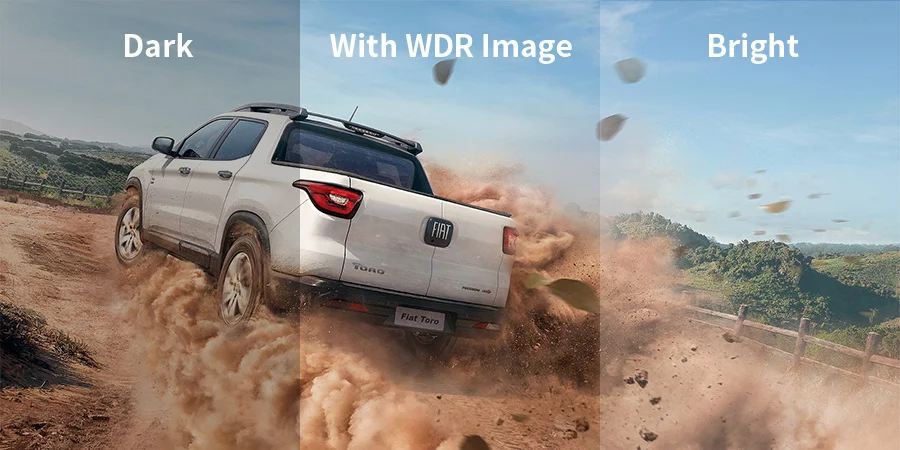

Wide Dynamic Range (WDR)

WDR technology can achieve very perfect video and image quality, regardless of whether the outside light is too bright or too dark.

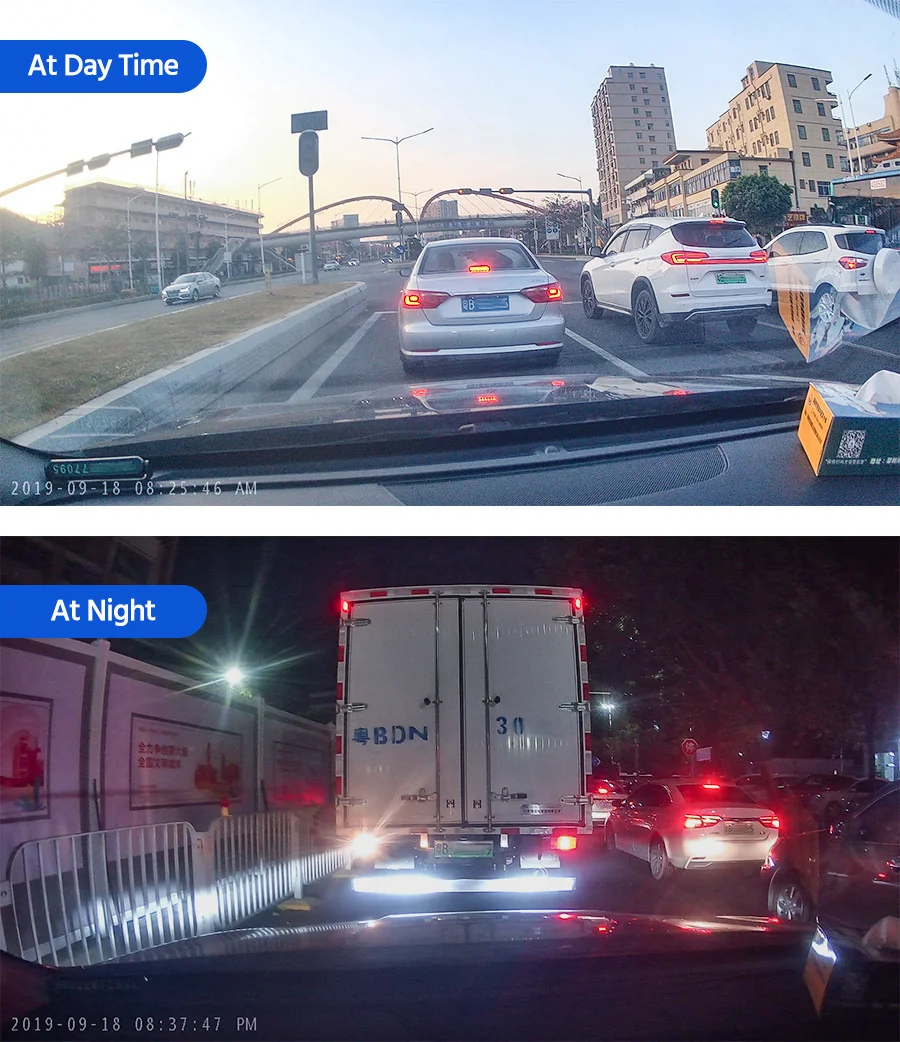

Video Display

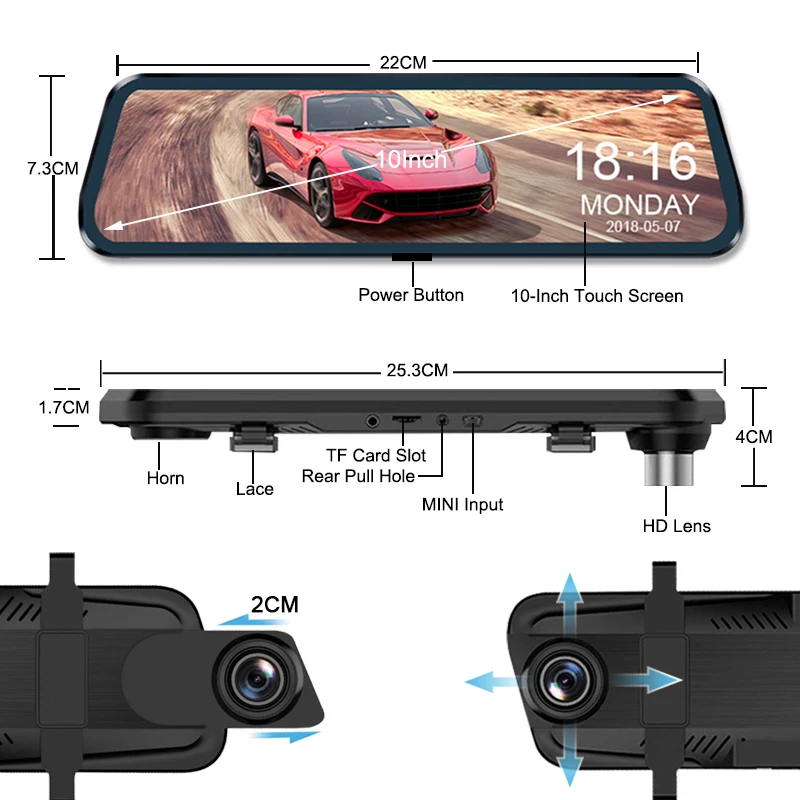

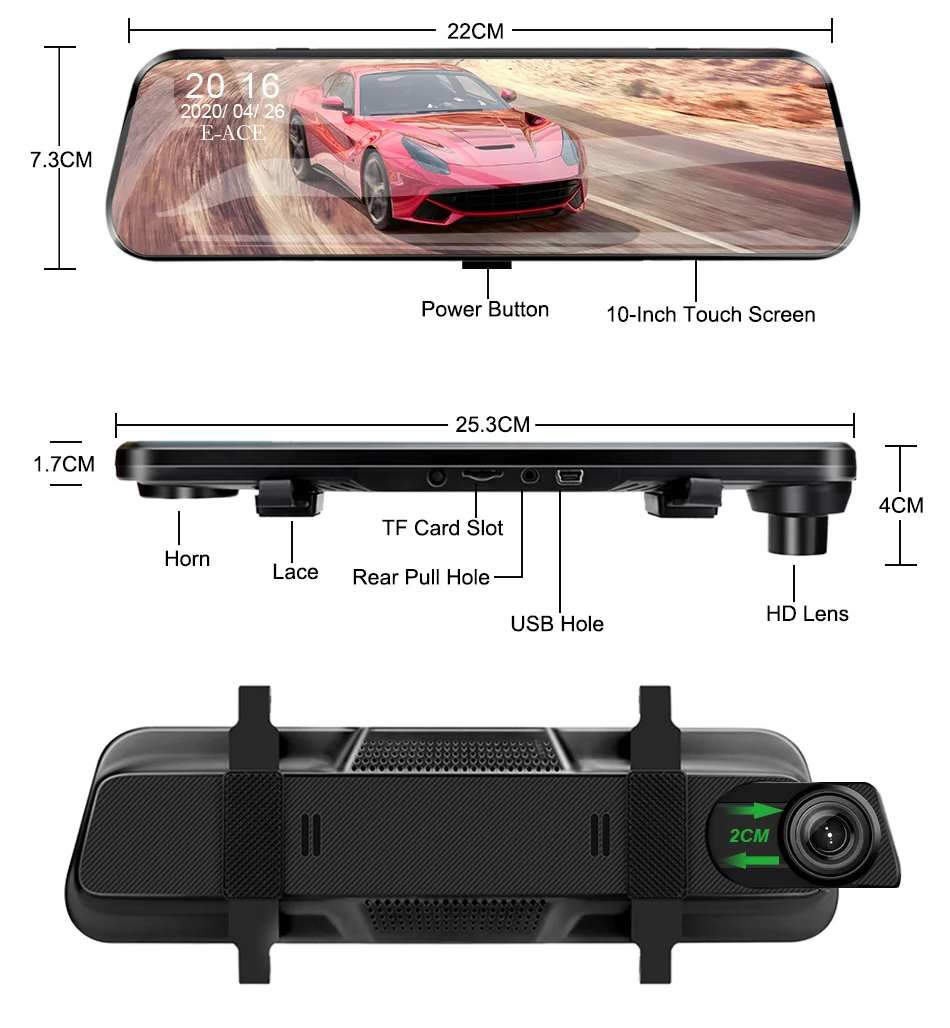

Details And Size Display

Packing List

DVR With 6M RC

-1 x DVR
-1 x power charge
-1 x User Manual
-2 x Bandage
-1 x USB card reader (gift)
-1 x1080P Rearview Camera With 6Meters Cable

DVR Wiht 6M RC KIT

-1 x DVR
-1 x power charge
-1 x User Manual
-2 x Bandage
-1 x USB card reader (gift)
-1 x1080P Rearview Camera With 6Meters Cable
-1 x Hardwire Kit For 24H Parking Monitoring

Install Display

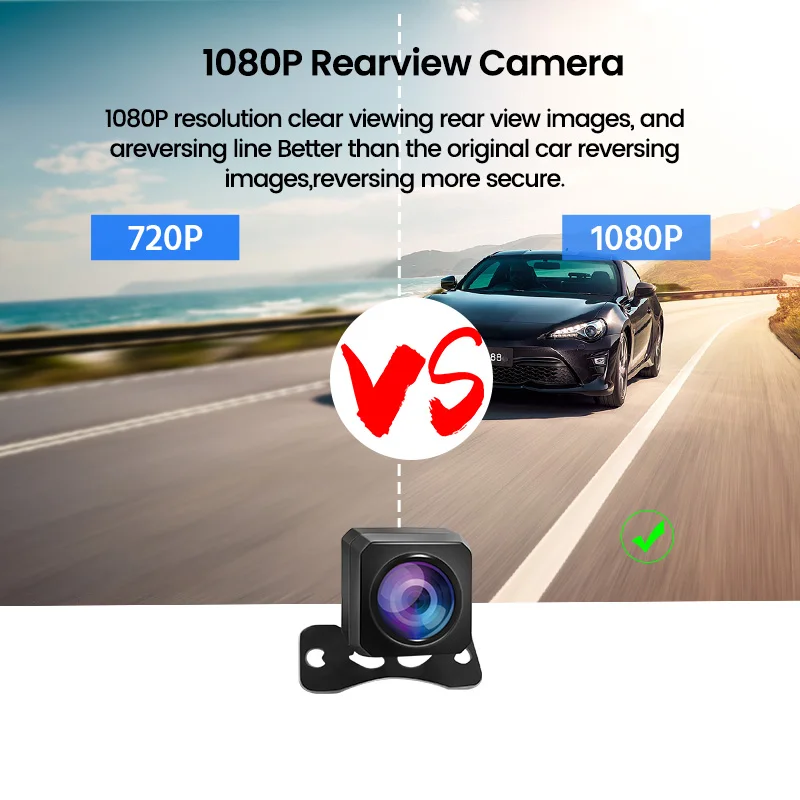

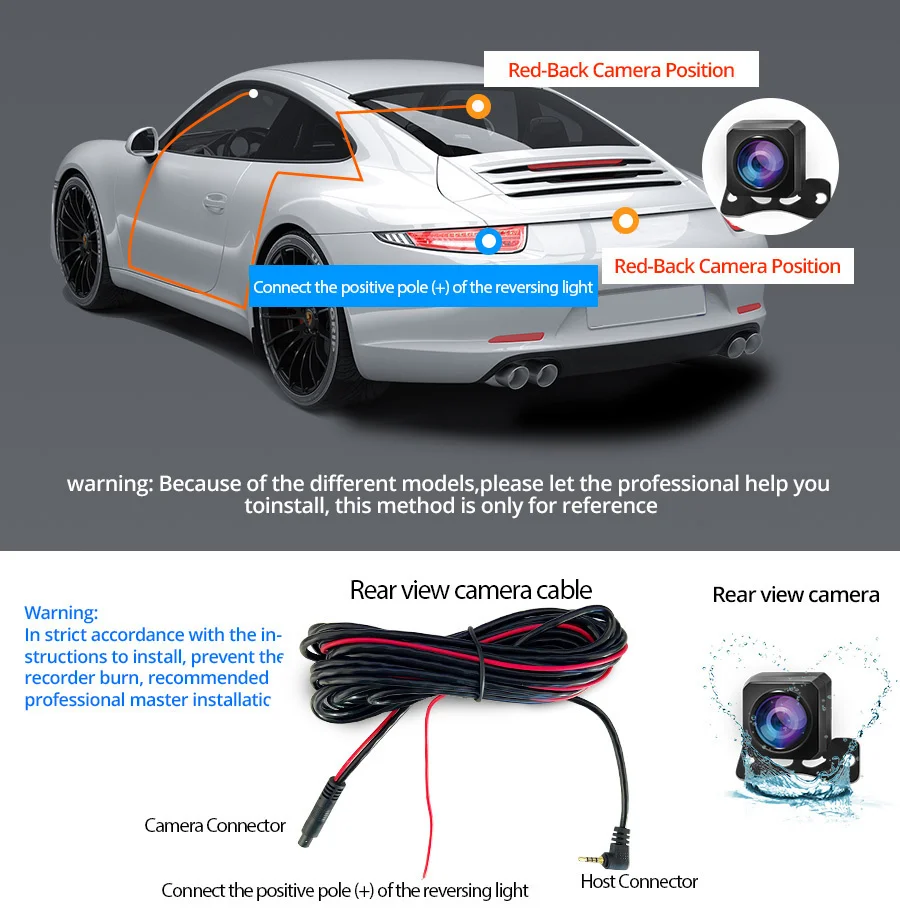

About Rear Camera Installation

Please connect the rear camera’s Red cable wire with your car reverse lamp power’s Positive pole(+). and then plug the car charger into the cigar lighter to power supply the car dvr.When you get your car in Reverse Gear,the car dvr will automatically switch to the rear camera with parking line.Then the auto reversing function will work.
